Product Details
＋

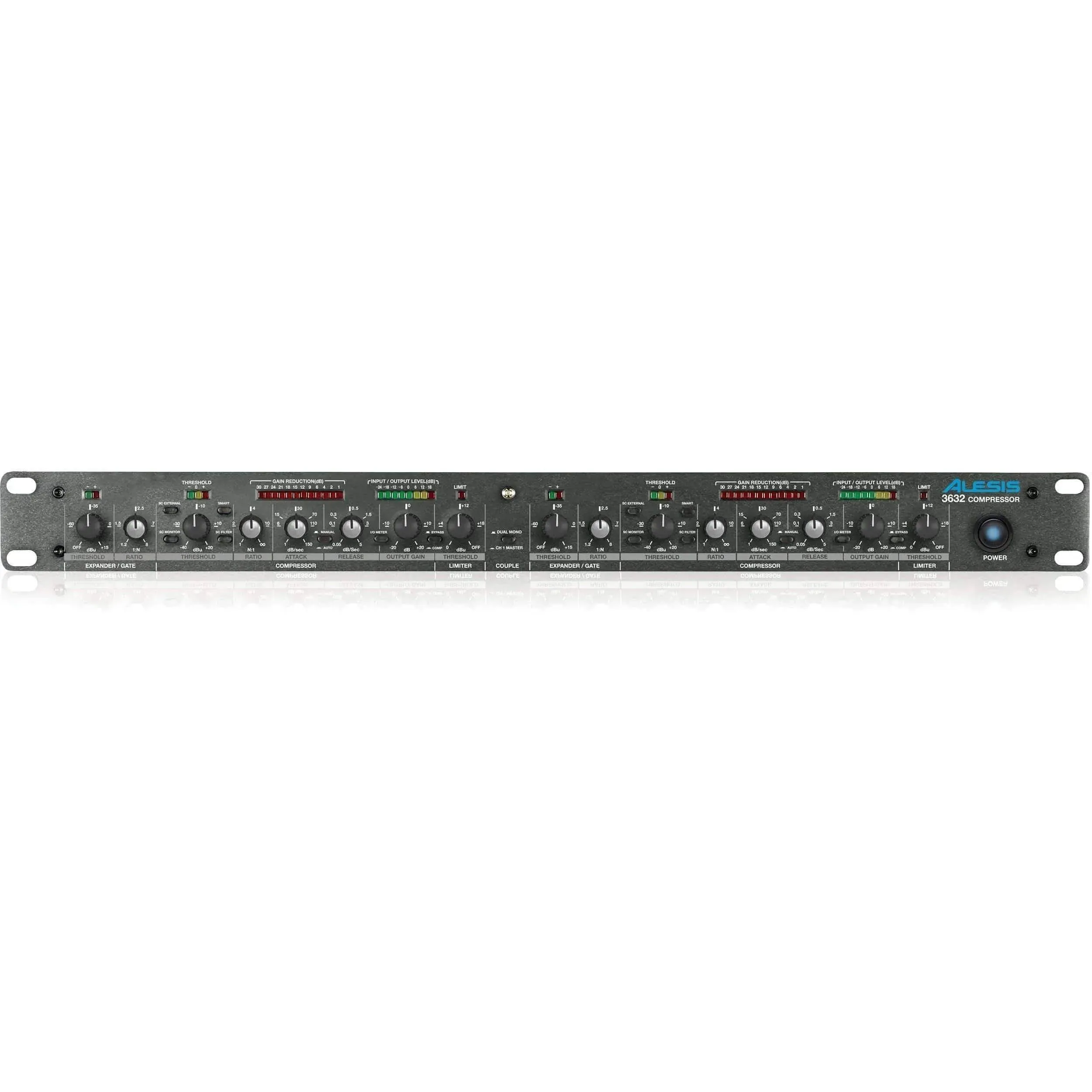

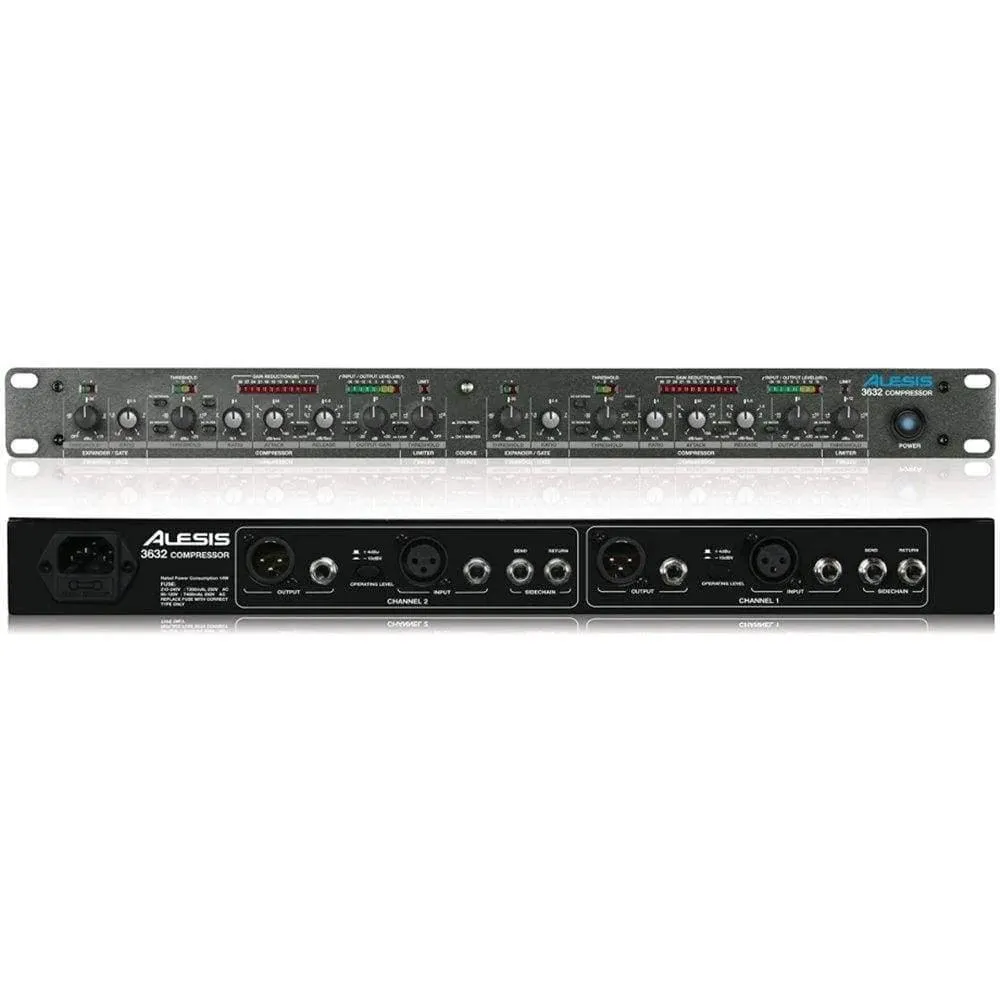

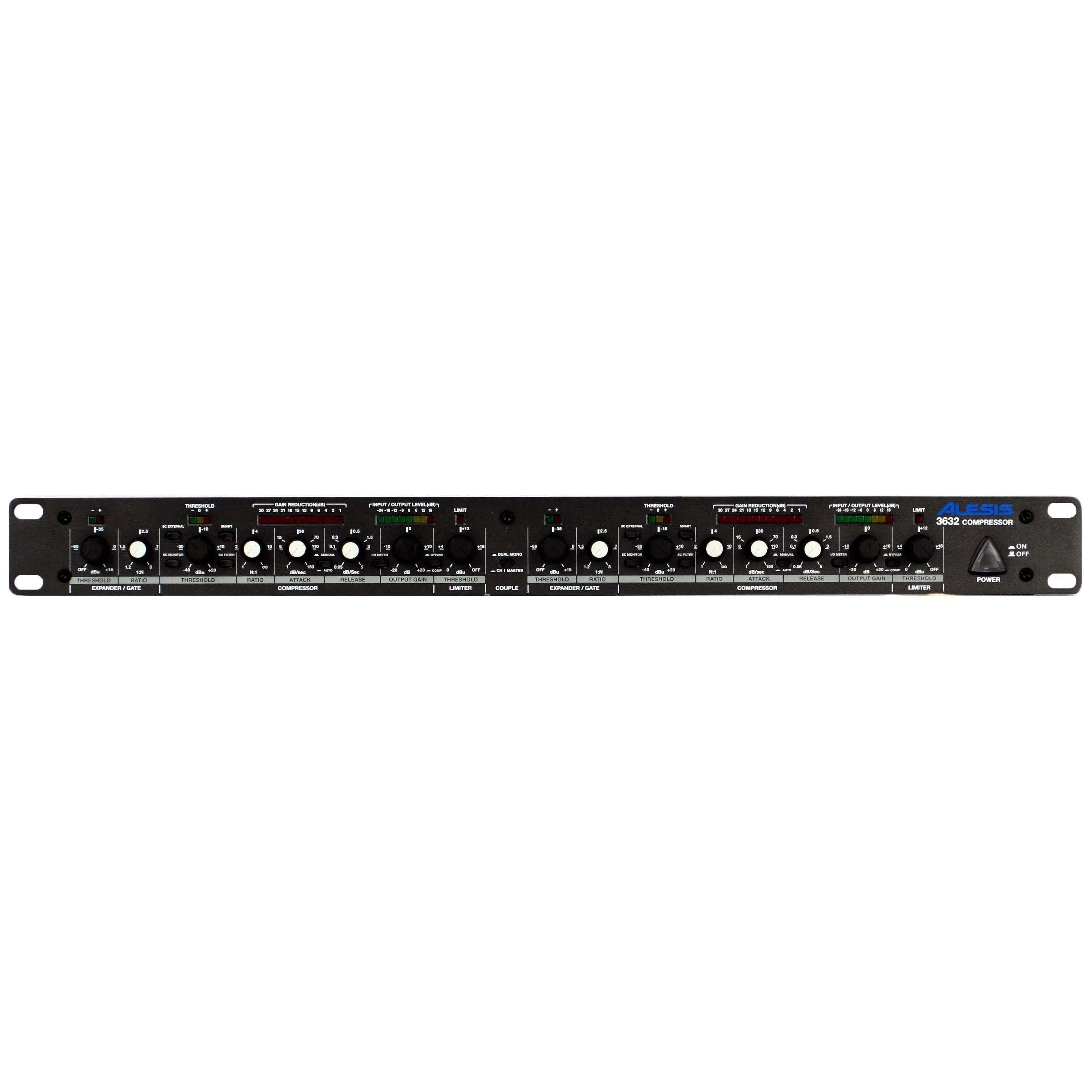

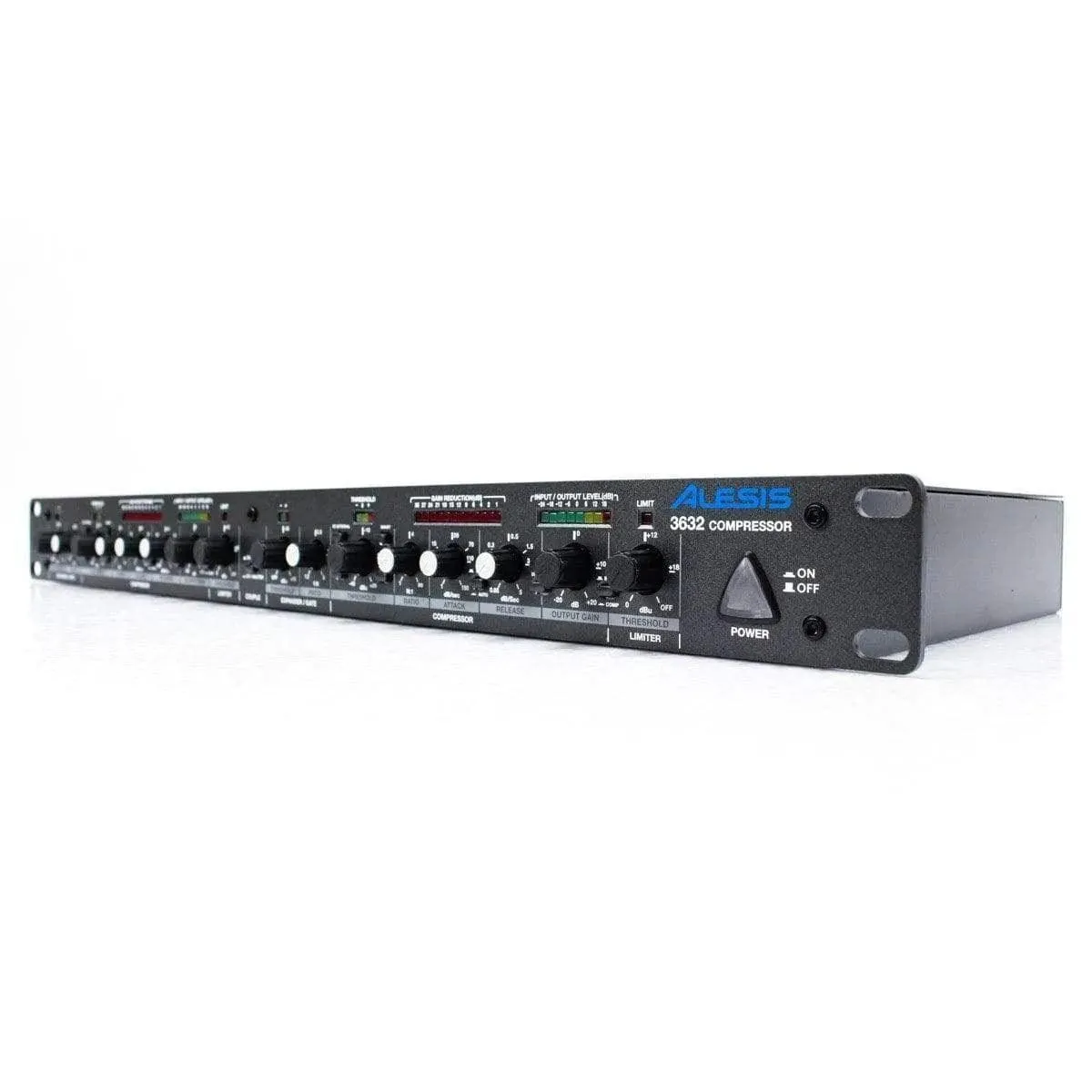

The 3632 Compressor is the follow-up to the 3630 Compressor, the most popular dynamics processor ever made. The 3632 Compressor builds on the popular design and features of its predecessor by providing two independent, full-featured compressor/limiters in one compact rack. It delivers superb sonic quality for any application from studio recording to live sound or broadcast.
FEATURES
- 3632
- Stereo compressor/expander/limiter/gate for complete dynamics management
- Minimized signal path for optimal sound quality
- Intelligent Ratio adjusts expansion based on input signal
- Intelligent Gain auto-adjusts output
- Adjustable attack and release time for manual control
- Couple switch for a one-touch selection between two mono channels and stereo-linked operation
- Sidechain send and return for use in an external effects loop
- Switchable low-cut filter minimizes audio-program pumping triggered by kick drum
- Gain-reduction LEDs and switchable input/output-level LED meters for visual monitoring of critical values
- Bypass switches on both channels
SPECIFICATIONS
| Number of Channels | 2 |
| Inputs | 2x XLR, 2x 1/4" TRS, 2x 1/4" TS |
| Return Outputs | 2x XLR, 2x 1/4" TRS, 2x 1/4" TS Send |
| Maximum Input Level | 21dBu |
| Compression Threshold | -40dB to 20dB |
| Compression Ratio | 1:1 to Infinity:1 |
| Attack Time | 0.1 mSec to 150 mSec/20dB |
| Release Time | 0.05 mSec to 5 Sec/20dB Gate |
| Gate Threshold | Off to 15dB |
| Gate Ratio | 1:1.2 to 1:8 |
| Maximum Output Level | 21dBu |
| Make-up Gain | -20dB to 20dB |
| Frequency Response | 20Hz to 20kHz, 0/-0.05dB |
| Dynamic Range | 125dB |
| Noise | THD N: 0.01% typical, 1kHz @ 4dBu |
| Power Requirements | 95 |
| Dimensions (WxDxH) | 19 x 7.7 x 1.75" (483 x 195 x 45mm) |
| Weight | 6.8 lbs (3.1kg) |
