DH-N468L124A

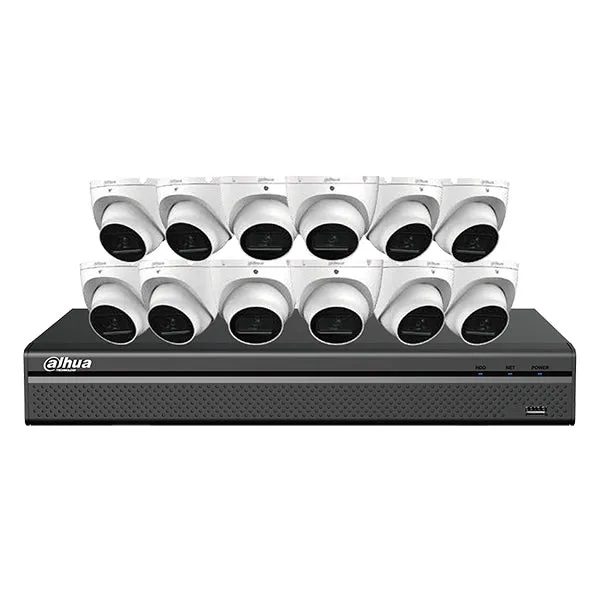

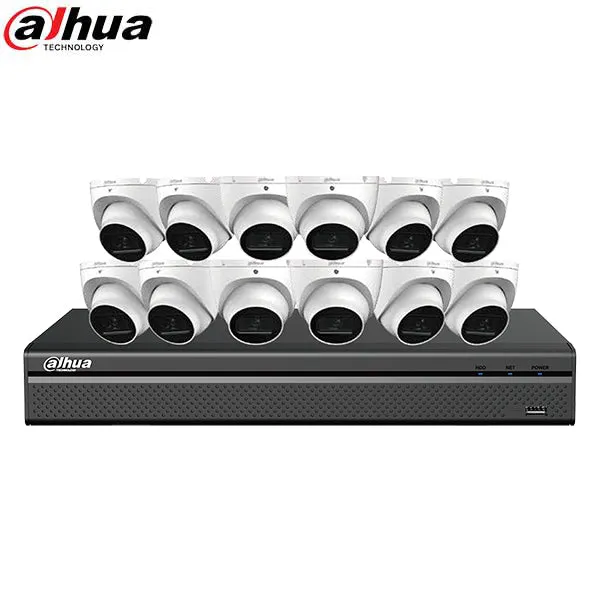

The Dahua Network Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The IP cameras offer the clarity of 4K video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.

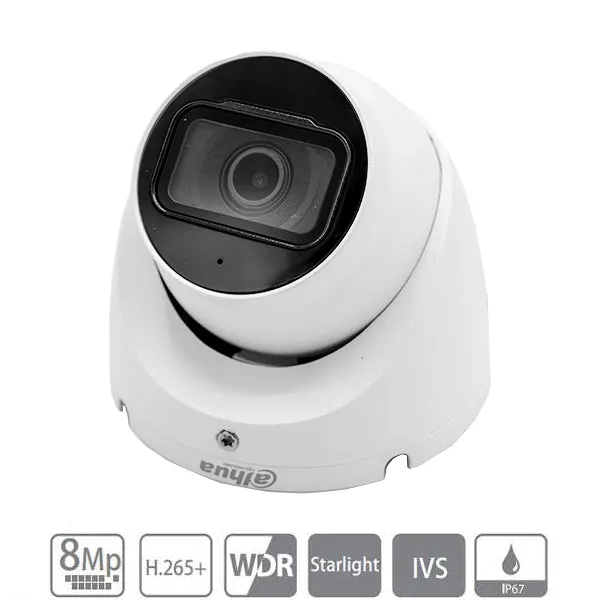

- 8MP Network Cameras
- 8 MP (3840 × 2160) at 15 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Maximum IR Length 30 m (98 ft) with Smart IR
- Starlight Technology for Ultra Low-light Applications
- Intelligent Video System
- IP67Ingress Protection
- 4K Network Video Recorder
- 4 TB Pre-installed Hard Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265 and Smart H.264 Dual Codec
- Maximum 160Mbps Incoming Bandwidth
- Call 1-800-878-6604 for Dealer Prices!
Technical Specification
| Camera | |
| Image Sensor | 1/2.7-in. 8 MP Progressive-scan CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 256 MB / 16 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color, 30 IRE: 0.04 lux at F2.0 B/W, 30 IRE: 0.004 lux at F2.0 0 lux (Illuminator On) |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
| Lens | |
| Lens Type | Fixed-focal |
| Iris Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max Aperture | F2.0 |
| Field of View | Horizontal: 105° Vertical: 56° Diagonal: 125° |
| Focus Control | Motorized |
| Close Focus Distance | 1.0 m (3.30 ft) |
| DORI² Distance - Detect - Wide (8 ppf) | 74.70 m (245.10 ft) |
| DORI² Distance - Observe - Wide (19 ppf) | 29.90 m (98.10 ft) |
| DORI² Distance - Recognize - Wide (38 ppf) | 14.90 m (48.90 ft) |
| DORI² Distance - Identify - Wide (76 ppf) | 7.50 m (24.60 ft) |
| Pan/Tilt/Rotation | |
| Range | Pan: 0˚ to 355˚ Tilt: 0˚ to 78˚ Rotation: 0˚ to 360˚ |
| Video | |
| Compression | Smart H.265 , H.265, Smart H.264 , H.264, H.264B, MJPEG |
| Streaming Capability | Two (2) Streams |
| Resolution | 3840 x 2160, 3072 x 2048, 3072 x 1728, 2592 x 1944, 2688 x 1520, 3 MP (2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 × 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate - Main Stream | 3840 x 2160 at 15 fps or 2688 x 1520 at 30 fps |
| Frame Rate - Sub Stream | D1 (704 x 480) at 1 to 15 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps H.265: 12 Kbps to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight | BLC, HLC, DWDR |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangle) |
| Region of Interest | Off, On (4 Zones) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Image Rotation | 0°, 90°, 180°, 270° (Supports 90°, 270° with 2688 x 1520 resolution or lower) |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP, FTIP, DHCP, DNS, DDNS, NTP, Multicast |
| Interoperability | ONVIF (Profile S, T), CGI, P2P, SDK, API |
| Maximum User Access | 6 (Total Bandwidth: 48MB) |
| Edge Storage | FTP |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Certifications | |
| Safety | EN 62368-1 |
| Electromagnetic Compatibility (EMC) |
FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU |
| Electrical | |
| Power Supply | 12 VDC or PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12 VDC), 3.1 W (PoE) Maximum (ICR H.265 Maximum Resolution Main Stream DWDR IR Intensity): 4.6 W (12 VDC), 5.6 W (PoE) |
| Environmental | |
| Operating Conditions | –40°C to 55°C (–40°F to 131°F), Less than or equal to 95% RH |
| Storage Conditions | –40°C to 55°C (–40°F to 131°F), |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | 85.6 mm x 94.0mm (3.4 in. x 3.7 in.) |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.43 kg (0.95 lb) |
N42C3P4 Sixteen-channel 4K Network Video Recorder (4 TB)
| System | |
| Main Processor | Industrial-grade Embedded Processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 16 channels |
| Audio | Input: One (1) Channel, RCA Output: One (1) Channel, RCA |
| Display | |
| Interface | One (1) HDMI Port One (1) VGA Port |
| Spot Output | HDMI or VGA, configurable |
| Native Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Decoding | Two (2) Channel of 8MP at 30 fps Four (4) Channels of 4MP at 30 fps Eight (8) Channels of 2MP at 30 fps 16 Channels of 2 MP at 15 fps |
| Multi-screen Display | 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Camera Lock, Motion Detection, Recording |
| Recording | |
| Compression | Smart H.265 , H.265, Smart H.264 , H.264, MJPEG |
| Audio Compression | PCM, G.711A, G.711Mu, G.726 |
| Supported IP Camera Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1 |
| Maximum Incoming Bandwidth | 160 Mbps |
| Record Mode | Manual Recording; Alarm Recording; SMD Recording; Smart Recording |
| Video Detection and Alarm | |
| Alarm Input | Four (4) Channels |
| Relay Output | Two (2) Channels |
| General Alarms | Motion Detection, Privacy Masking, Video Loss, Scene Changing, PIR Alarm, IPC External Alarm |
|
Anomaly Alarms |
Camera Disconnection, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Locked, Cybersecurity Exception |
| Analytics Alarms | Face Detection, Perimeter Protection (Intrusion and Tripwire), IVS, People Counting, Heat Map, SMD Alarms |
| Alarm Actions | Recording, Snapshot, Audio, Buzzer, Log, Preset, Email |
| Playback and Backup | |
| Sync Playback | 1/4/8 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to 1 second) Smart Search |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Reverse, By Frame, Full Screen, Backup Selection (Video Clip or File), Partial Zoom, Audio On/Off |
| Backup Mode | USB Device and Network |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and Others |
| Network | |
| Interface | One (1) RJ-45 Port (10/100/1000 Mbps), Self-adaptive |
| PoE | Sixteen (16) Ports (IEEE802.3af/at) |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP Camera; DVR; NVS); P2P; Auto-register |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Browser | Chrome; IE 9 or later |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 2 SATA III Ports, up to 10TB capacity per HDD |
| Auxiliary Interface | |
| USB | Two (2) USB 2.0 Ports |
| RS232 | One (1) Port |
| Electrical | |
| Power Supply | 100 VAC to 240 VAC, 47 Hz to 63 Hz, 3.5 A |
| Power Consumption | NVR: < 10 W, without HDD |
| Total PoE Budget | 25.5 W single port, 117 W total |
| Environmental | |
| Operating Temperature | –10° C to 55° C ( 14° F to 131° F), 10% to 93% RH |
| Storage Temperature | 0° C to 40° C (32° F to 104° F), 30% to 85% RH |
| Construction | |
| Dimensions |
375.0 mm x 327.90 mm x 53.0 mm (14.76 in. x 12.91 in. x 2.09 in.) |
| Net Weight |
2.63 kg (5.80 lb), without HDD |
| Gross Weight | 3.91 kg (8.62 lb), without HDD |
| Certifications | |
| Safety | EN62368-1 UL 62368-1 CAN/CSA C22.2 No.62368-1-14 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4 |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
Downloads:
Functions:
Starlight Technology
For challenging low-light applications, Dahua’s Starlight low light Technology offers best-in-class light sensitivity, capturing details in low light applications. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Intelligent Video System
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, where a target crosses a user-defined line and the camera quickly and accurately responds by triggering an alarm. Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels.
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30 m (98 ft).
Flexible Recording
The NVR offers a variety of configurable recording options and schedules that saves disk space and active monitoring time. The NVR monitors incoming video and can be programmed to record if motion is detected or if an alarm is triggered. The NVR can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras.
Smart H.265
Smart H.265 is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265 technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Environmental
With a temperature range of –40° C to 60° C (–40° F to 140° F), the cameras are designed for extreme temperature environments. The camera complies with the IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. The NVR features an operating temperature of –10° C to 55° C ( 14° F to 131° F).
Interoperability
The camera and NVR conform to the ONVIF (Open Network Video Interface Forum) specification, ensuring interoperability between network video products regardless of manufacturer.
