Features

• Automatic Input SelectionAutomatically selects the input, Alternator, Solar, DC, based on the Active input. No manual switching required.

• Dual Charging ModeWorks with both fixed voltage (standard voltage 12-24V) and variable voltage (Smart Alternators).

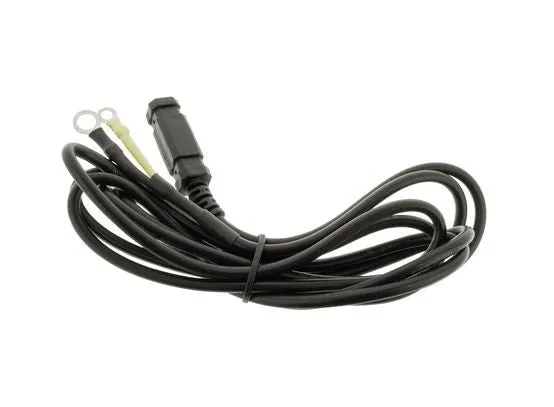

• Ignition ConnectionAllows “Low Input Operation” suitable for variable voltage alternators.

• Multi-Chemistry ChargingCapable of charging a variety of rechargeable batteries, like Lead Acid Wet / Flooded types, GEL, AGM, MF, Calcium and Lithium batteries.

• Solar MPPT RegulatorMaximises the power available from solar panels even in low light.

• 7 Stage Intelligent Switch Mode ChargingUnique charging algorithm enhances the life of batteries by ensuring a full charge and conditioning. It also recovers batteries many times faster than an alternator.

• Wide Operating RangeVehicle voltage input from 11 – 32 Volt, Solar input is from 9 – 42 Volt and DC input (40amp only) 11 – 32 Volt.

• Temperature CompensationUsing the temperature sensor, the charger continually adjusts its charge rate to suit the battery temperature protecting the battery from overcharging and overheating.

• Super Quiet OperationNo internal fan ensures a super quiet operation.
• Parallel Connection UnitsCan be connected in parallel to provide more output when using high output alternators.

• Additional accessory that provides ease of wiring when multiple earths are required.

• An additional accessory the LCD display monitors the Main andamp; Auxiliary batteries status.

Protection

• Reverse PolarityDetects reversed connection on the input or output terminals preventing internal damage.
• Built in Battery IsolatorIsolates the main and auxiliary batteries at pre-set parameters preventing the main battery from being drained by the accessories connected to the auxiliary battery.
• Spark FreeWill not begin charging unless the load is securely fastened, preventing output leads from sparking due to an accidental short circuit.
• Versatile InstallationIP67 Rating, sealed against dust and water ingress. Safe to operate in -20°C to 85°C temperatures.
