Description

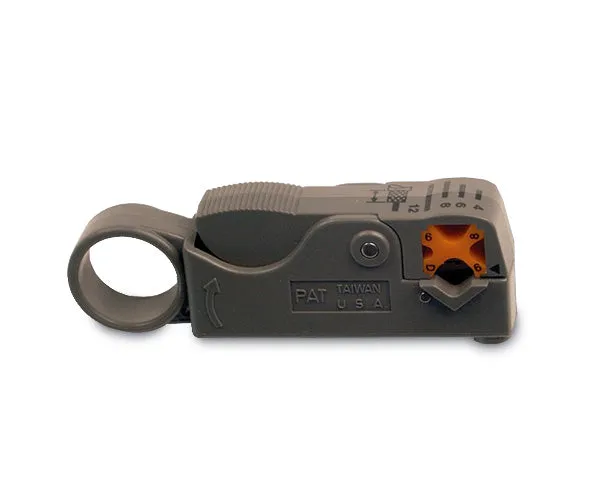

E Series 2-Level Coaxial Cable Stripper (for RG-58/59/62/6/6 Quad)
The E Series Coaxial Cable Strippers are simple to operate and ensure a professional, repeatable strip every time. All strippers include a hex wrench for adjusting blade stripping depth. Stripping lengths are also adjustable.
Features
Features
- Works with RG-58/59/62/6/6 Quad coax cables.
- Adjustable stripping depth for various insulation types and thicknesses.
- Preset for 6mm (referred to as the 1/4" strip) but adjusts to additional dimensions.
- Uses drop-in replacement blades, no cassettes required.
- Hex wrench snaps into housing for convenient storage.
- Molded from high impact plastic for long life.
Additional Information
Additional Information
|
Adjusting Tools 1. Set V-Block to proper cable type (see Fig-A) by sliding V-Block out of housing. Rotate to proper setting and re-insert. 2. Adjust the blade stripping depth with the hex wrench as shown in Fig B. The Hex wrench is stored in the bottom of the tool. 3. Stripping distance (see Fig D) or length of the exposed shield & dielectric can be adjusted. Push out the blade roll pin (see Fig A) with the hex wrench. Use tweezers (not supplied) to reposition the blade to the proper slot in bottom jaw housing as shown in Fig C. |
What's in the Box
What's in the Box
- Qty 1 - E Series 2-Level Coaxial Cable Stripper
