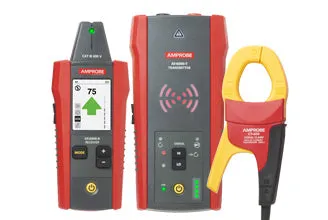

Name: Fluke Amprobe AT-6030, Advanced Wire Tracer with Receiver, Transmitter, Clamp, Rb, Hard Carrying Case
SKU: 718028

Product Details ＋

(item no. 4867996)

Amprobe’s newest wire tracer combines a Receiver and powerful Transmitter to locate energized and de-energized wires, breakers, and fuses without having to disconnect any equipment. The Receiver features four tracing modes optimized for a range of applications. Its fully automatic breaker tracing capability saves time and eliminates the confusion of multiple false positives by detecting the highest recorded signal in a breaker or fuse. The Transmitter utilizes two optimized frequencies that allows for a clean and reliable signal. The Signal Clamp can be used in applications where there is no access to bare conductors by enabling the Transmitter to induce a signal into a wire through insulation. Whether you’re a novice user or an expert, the AT-6000 Amprobe Advanced Wire Tracer kit will help you get the job done fast.

Features

Traces wires in walls, ceilings, floors and corners
Locates breakers and fuses
Pinpoints shorts and opens
High resolution 2.5" TFT LCD color display
Three Transmitter signal modes
- "High Signal" mode for normal circuits
- "Low Signal" mode for precision tracing in difficult areas
- "Loop" mode for closed loop de-energized circuits
Four Receiver tracing modes
- "Quick Scan" mode allows for quick wire detection at a longer distance
- "Precision" mode precisely pinpoints wires or faults located behind walls, floors, or ceilings
- "Breaker Identification" mode facilitates quick and easy breaker locating
- "Non-Contact Voltage Detection" mode utilizes passive tracing without the Transmitter to verify if a wire is energized
Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits
Comes with custom Amprobe hard carrying case, test leads, CT-400 signal clamp, and accessories
Compatible with optional TIC 410A Hot Stick attachment to extend your reach

Specifications

Specifications	AT-6000-R Receiver	AT-6000-T Transmitter	CT-400 Signal Clamp
Measurement Category	CAT III 600 V	CAT III 600 V	CAT IV 600 V, CAT III 1000 V
Operating voltage	0 to 600 V AC/DC	0 to 600 V AC/DC	0 to 1000 V AC
Operating frequency	Energized: 6.25 kHz De-Energized: 32.768 kHz	Energized: 6.25 kHz De-Energized: 32.768 kHz	Wire tracing: 32.768 kHz AC current measurement: 45 Hz to 400 Hz
Hazardous voltage detection	See NCV detection	> 30 V AC/DC	N/A
Signal indications	Numeric, bar graph display and audible beep	LEDs and audible beep	N/A
Response time	Tip Sensor (energized/de-energized): 500 MS NCV: 500 MS Battery voltage monitoring: 5 sec	Line voltage monitoring: 1 sec Battery voltage monitoring: 5 sec	Instantaneous
Current output of signal (typical)	N/A	Energized circuit: HI mode: 60 mA RMS LO mode: 30 mA RMS De-energized circuit: HI mode: 130 mA RMS LO mode: 40 mA RMS Loop mode: 160 mA RMS	1 mA/A for AC current measurement with multimeter
Signal voltage output (nominal)	N/A	De-energized circuit: LOW: 29 V RMS, 120 Vp-p HIGH: 33V RMS, 140 Vp-p With CT-400: loop model: 31 V RMS, 120 Vp-p	De-energized circuit: 2.4 V RMS, 24 Vp-p
Range detection (open air)	Tip sensor (Energized): Max distance via air: up to 20 ft (6.1 m) Pinpointing: approx. 1.97 in (5 cm) Tip sensor (De-energized): Max distance via air: up to 14.7 ft (4.5 m) Pinpointing: approx. 1.97 in (5 cm) NCV detection (40 to 400 Hz): Max. sensitivity: 90 V up to 6.56 ft (2 m) Min. sensitivity: 600 V up to 0.39 in (1 cm)	N/A	N/A

Kit Contains	AT-6020 kit	AT-6030 kit
AT-6000-R Receiver	•	•
AT-6000-T Transmitter	•	•
TL-6000 Test Lead and Accessory Kit	•	•
CC-6000 Hard Carrying Case	•	•
User Manual	•	•
1.5 V AA (IEC R6) Batteries (12) (not installed)	•	-
Rechargeable Batteries (12) (not installed)	-	•
Battery Chargers (3)	-	•
CT-400 Signal Clamp	-	•

Model Name

Description

AT-6030

Amprobe AT-6030 Advanced Wire Tracer Kit

Traces wires in walls, ceilings, floors and corners
Locates breakers and fuses
Pinpoints shorts and opens
High resolution 2.5" TFT LCD color display
Three Transmitter signal modes
- "High Signal" mode for normal circuits
- "Low Signal" mode for precision tracing in difficult areas
- "Loop" mode for closed loop de-energized circuits
Four Receiver tracing modes
- "Quick Scan" mode allows for quick wire detection at a longer distance
- "Precision" mode precisely pinpoints wires or faults located behind walls, floors, or ceilings
- "Breaker Identification" mode facilitates quick and easy breaker locating
- "Non-Contact Voltage Detection" mode utilizes passive tracing without the Transmitter to verify if a wire is energized
Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits
Comes with custom Amprobe hard carrying case, test leads, and accessories
Compatible with optional TIC 410A Hot Stick attachment to extend your reach, HS-1 magnetic hanger, and TL-7000-25 m test lead

Included Accessories: AT-6000-R Receiver, AT-6000-T Transmitter, TL-6000 Test Lead and Accessory Kit, CT-400 Signal Clamp, CC-6000 Hard Carrying Case, Rechargeable Batteries, Battery Chargers, User Manual
