Mid Span Slit & Ring Tool (5.8 mm-12 mm)

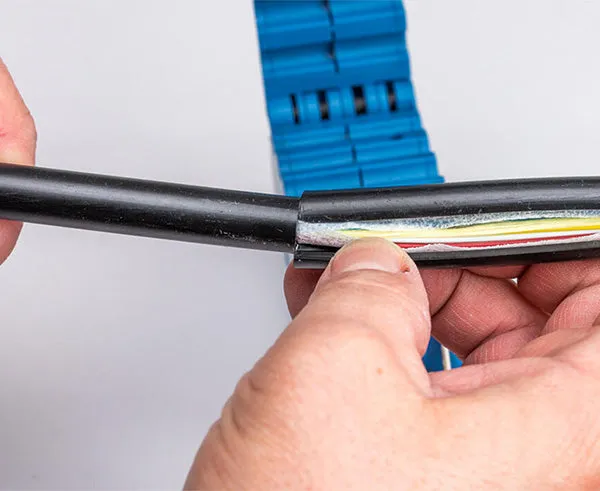

The PATENTED and award-winning MS-426 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in Prysmian ESMF Optical Mini FlexTube® cables (as well as other thick-walled 5.8 to 12 mm diameter jackets, including Corning equivalent cables). Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.

Features

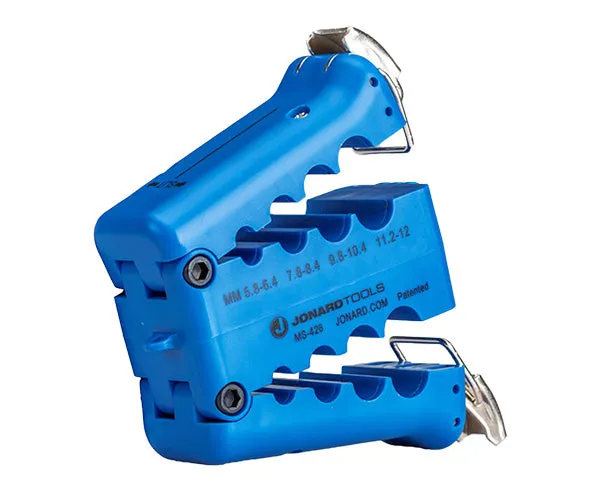

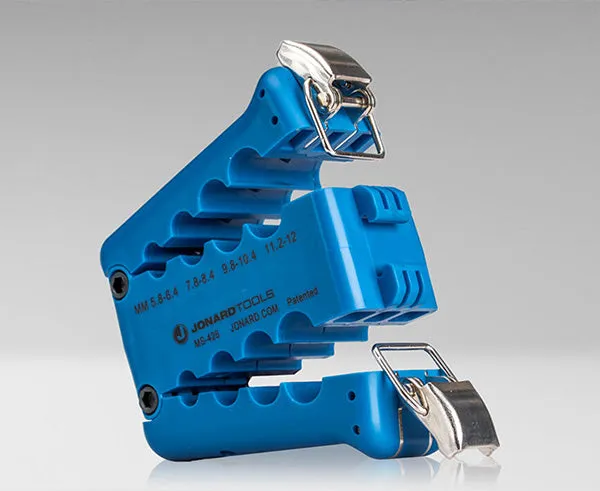

Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 5.8 mm to 12 mm

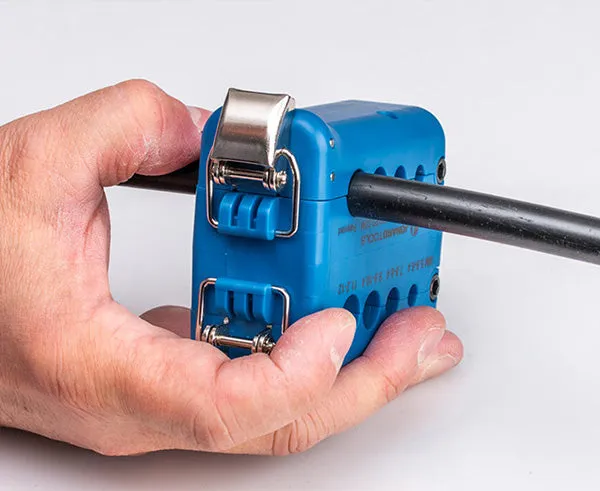

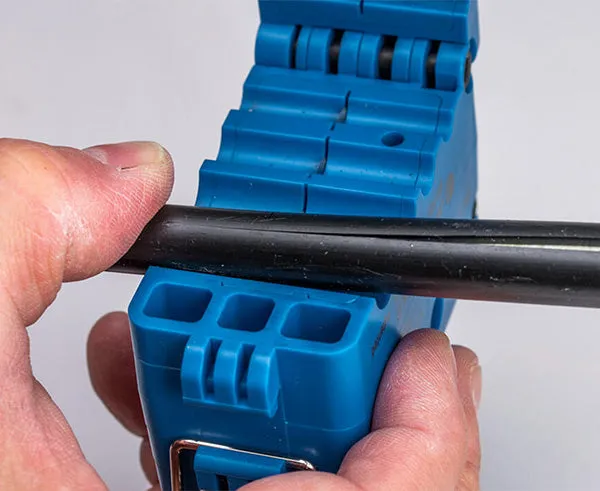

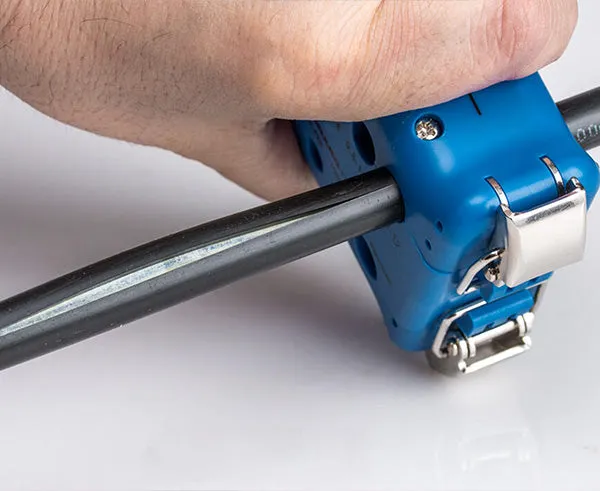

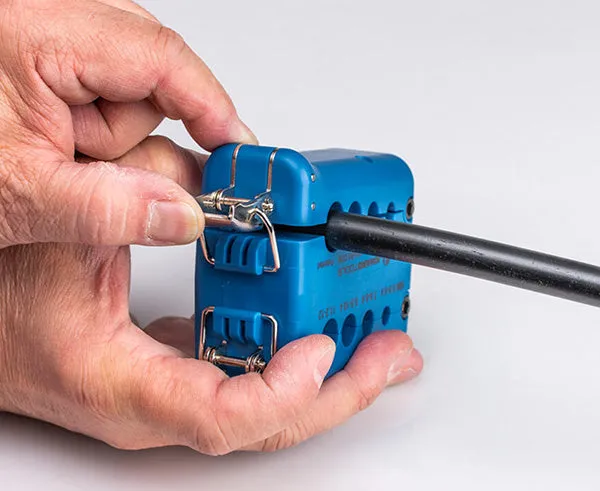

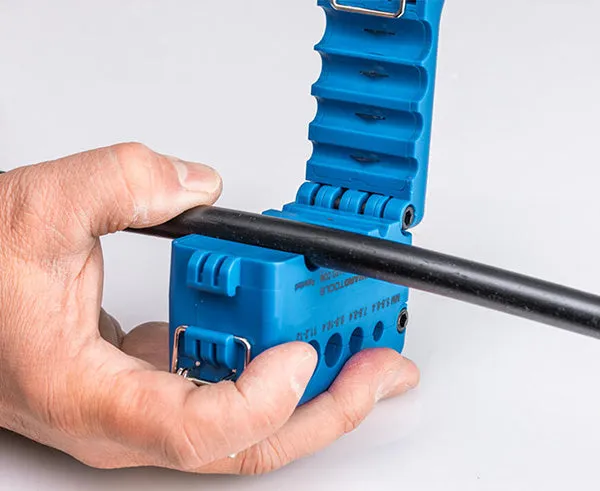

One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
Compact design weighing less than 8 oz with included tethering hole makes it perfect to use in tight spaces or on the go

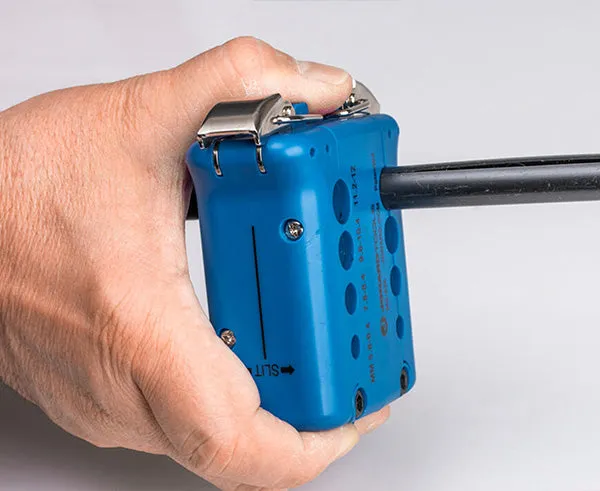

Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
This tool was specially designed for use on Prysmian ESMF Optical Mini FlexTube® cables and other similar style cables, including Corning equivalent cables
Replacement blade set available, part number: MS-426RB
Blades last for 5,000 slits/cuts

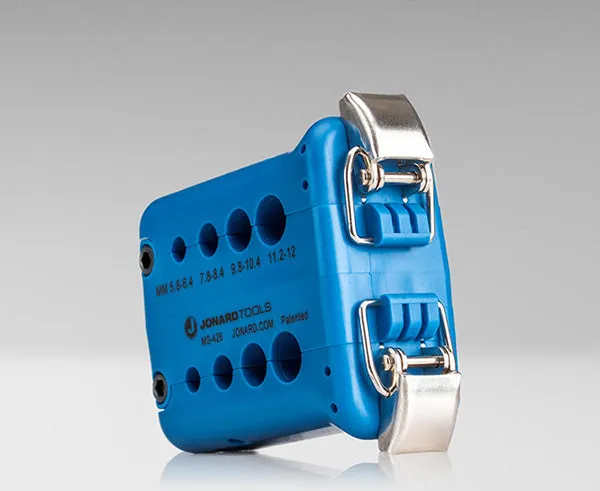

Groove Sizes: 5.8-6.4 mm | 7.8-8.4 mm | 9.8-10.4 mm | 11.2-12 mm

Specifications

Cut Type	Slit, Ring
Number of Slitting Grooves	4
Number of Ringing Grooves	4
Cable Type	Thick-walled Jackets (up to 2.0 mm thick)
Cable Diameter	5.8 mm-12 mm
Dimensions	3.58" x 1.53" x 3.37" (9.1 cm x 3.9 cm x 8.6 cm)
Weight	0.46 lb (207.932 g)
UPC #	811490019973
