Product Details
＋
Overview

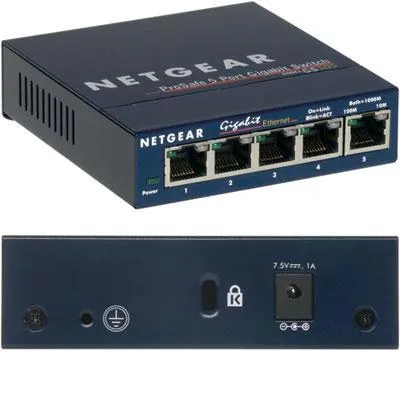

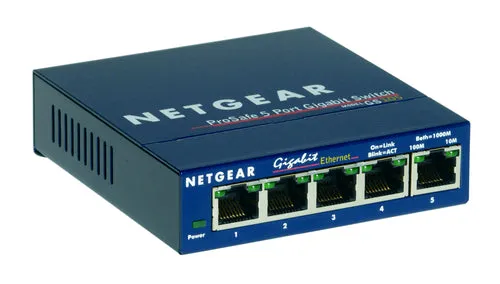

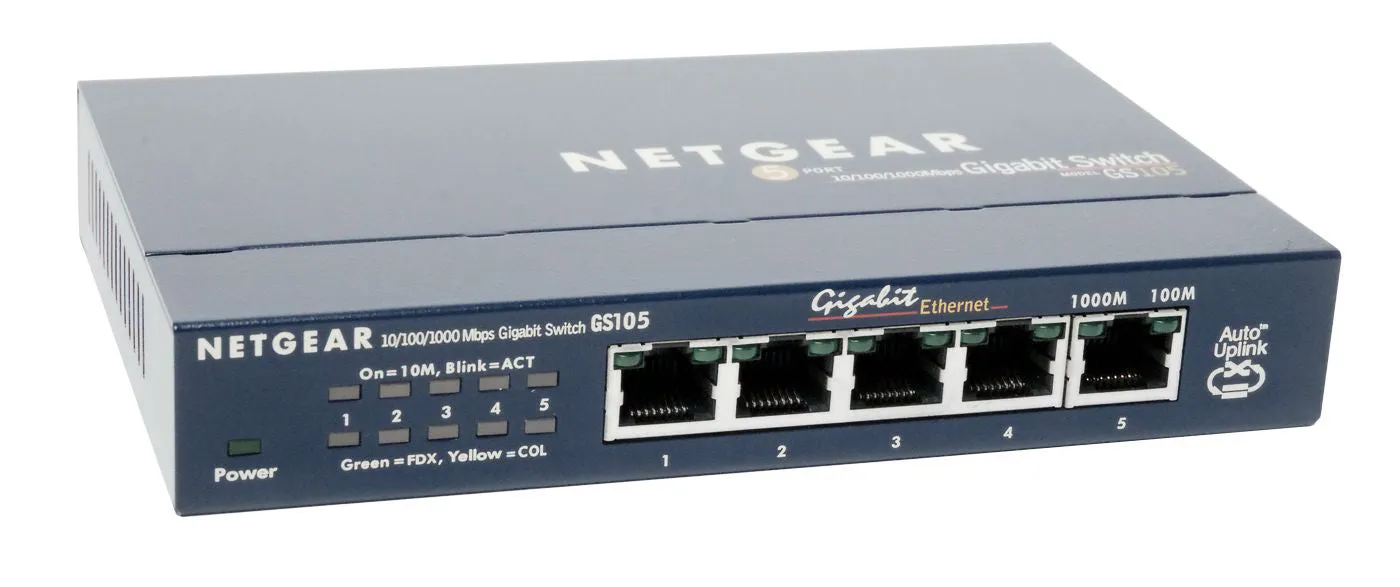

Netgear ProSafe 5-port Unmanaged Ethernet Switch- GS105NA
Specification
| Specification: | |
|---|---|
General Information |
|
|
Product Condition:
|
Brand New
|
|
Manufacturer
:
|
Netgear
|
|
Manufacturer Part
:
|
GS105NA
|
|
Product Model
:
|
GS105
|
|
Product Line
:
|
ProSafe
|
|
Product Name
:
|
Netgear ProSafe GS105 Ethernet Switch
|
|
Product Type
:
|
Ethernet Switch
|
Interfaces/Ports |
|
|
Total Number of Network Ports:
|
5
|
|
Number of Network (RJ-45) Ports
:
|
5
|
|
Port/Expansion Slot Details
:
|
5 x Gigabit Ethernet Network
|
Media & Performance |
|
|
Media Type Supported:
|
Twisted Pair
|
|
Ethernet Technology:
|
Gigabit Ethernet
|
|
Network Technology:
|
10/100/1000Base-T
|
Reliability |
|
|
MTBF:
|
87600 Hour
|
Power Description |
|
|
Power Source:
|
AC Adapter
|
Physical Characteristics |
|
|
Form Factor:
|
Desktop/Rack-mountable
|
|
Unit Dimensions (DxWxH):
|
4.1" x 6.3" x 1.0"
|
|
Weight (Approximate):
|
1.08 lb
|
What’s Included |
|
|
Package Content:
|
5-port 10/100/1000 Mbps Gigabit Ethernet Switch (GS105)
Wall-mount kit Power adapter Installation guide Warranty & Support information card |
Additional Information |
|
|
Network Latency:
|
Network Latency (100 to 100 Mbps): 20 µs (max)
Network Latency (1000 to 1000 Mbps): 10 µs (max) |
|
Forwarding Mode:
|
Store-and-Forward
256K On-Chip Packet Buffering |
|
Potent:
|
Moves huge files fast! Features five high-speed, auto-switching 10/100/1000 Mbps Ethernet connections. And because Gigabit Ethernet is a full duplex standard, you get up to 2000 Mbps on each port.
|
|
Capable:
|
Integrates 10, 100, and 1000 Mbps devices on the same network. Every port automatically senses the right speed and full/half duplex mode, and Auto Uplink technology automatically adjusts for straight-through or crossover cables.
|
|
Trim:
|
Sized to save space, this sturdy metal 5-port switch is compact and fits easily on a desk or mounts on a wall, making it ideal for home and small office environments.
|
|
Easygoing:
|
LEDs embedded in RJ-45 jacks make for easy monitoring. Provides noiseless operation. Supports PC or Mac® O/S.
|
Certifications Class & Safety Certifications |
|
|
Certifications & Standards:
|
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z 1000BASE-T Gigabit Ethernet Windows, MAC OS, NetWare, Linux UL (UL 60950) CUL C-Tick CE Mark TUV licensed (EN 60950) FCC Class A and VCCI Class A CE Class A MIC |
System Requirements |
|
|
Required Systems:
|
UTP Category 5 cables or better
Network card for each PC or server (e.g. GA302T) |
Warranty |
|
|
Limited Warranty:
|
Lifetime
|
Warranty & Returns
Warranty Info
- Limited Warranty period (parts & labor): Lifetime
- Netgear Support Phone: 800-211-2069
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
