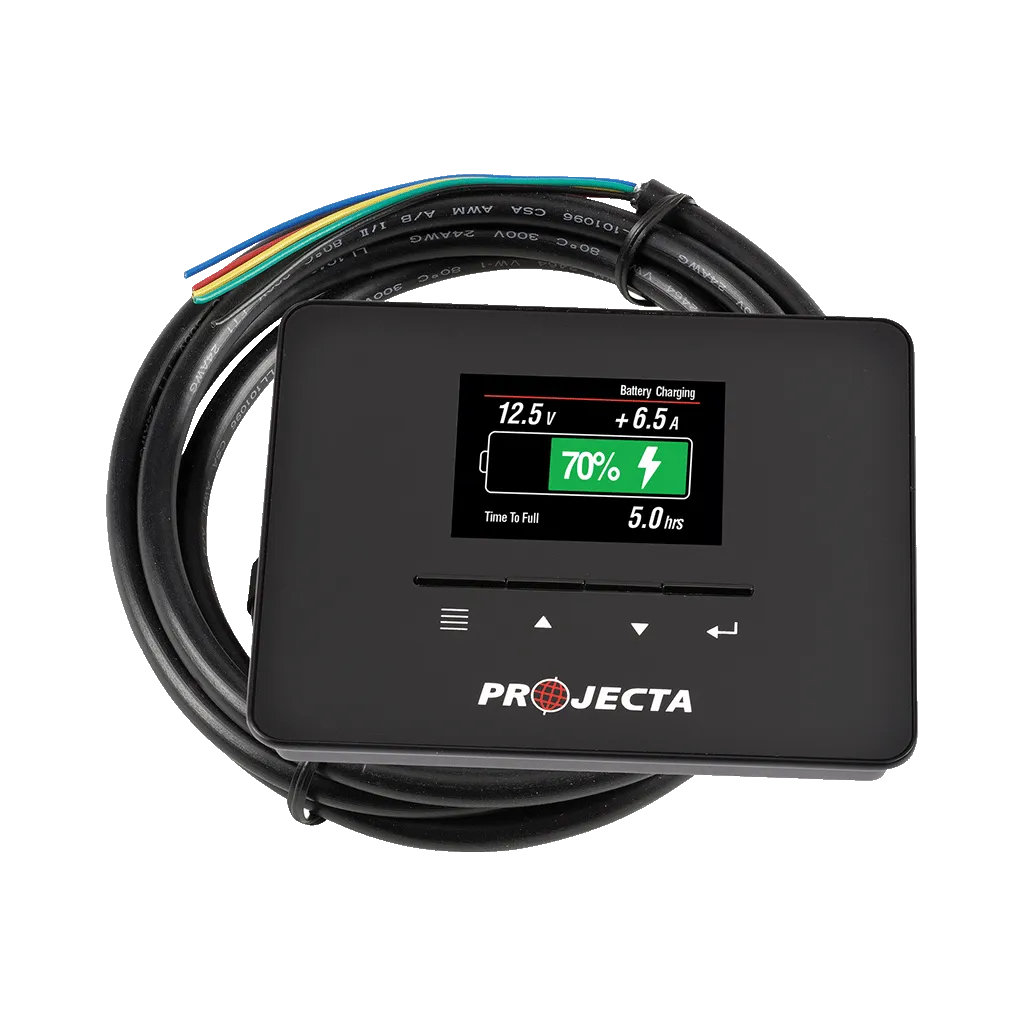

Projecta BM320 is a smart, full-colour LCD monitor that accurately displays a battery’s total capacity, overall health and general status. BM320 is a great battery monitor for your 4WD, Camper Trailer, or Caravan.



Features

• High intensity 2.4" Colour LCD screen displays: predicted state of charge, battery health, time to full charge, and time to empty
• Kit includes a 500Amp shunt and terminals for professional installation
• Easy to use and navigate buttons provide the user total control and the ability to program low battery capacity and battery health alarms
• Supplied pre-wired 1.5m lead complete with 4 pin connector into the rear of the unit. A separate terminal block provides a further wiring option
• Easy and secure surface mount installation via supplied ‘click-fit’ mounting bracket enabling fixture to any surface



Specifications

Part No - BM320
Current Draw -12V/1.5mAdc
Input Voltage Range - 6.0Vdc–17.0Vdc
MAX Current - 320A
Battery Capacity Supported - 5-320AH
Display Resolution Current - 0.1A, Voltage - 0.1V, Battery Capacity - 0.1Ah
Type Of Battery Supported - Wet/AGM/Gel/Calcium
Cable Length - 1.5m
Connectors - Terminal Block, Molex 4 pin snap-fit

Display

Time Remaining - (to full/to empty)
Power Remaining - (Ah)
Charing/Discharging Status
BATTERY STATE OF HEALTH
(Ideal, Good, Fair, Poor)
Protection - Minimum Voltage - 6V
Input Over-Voltage - 17V
Protection - Reverse Polarity Protected
