Renogy 200 Watt 12 Volt Starter Kit

The Renogy 200 Watt 12 Volt Starter Kit is ideal for beginners looking to harness solar energy for small off-grid setups. Whether it's for an RV, boat, cabin, or even a shed, this kit comes with everything you need to start generating power from the sun.

200W Solar Power

The kit includes two 100W monocrystalline solar panels, which offer excellent efficiency and performance, ideal for low-light conditions and smaller energy needs.

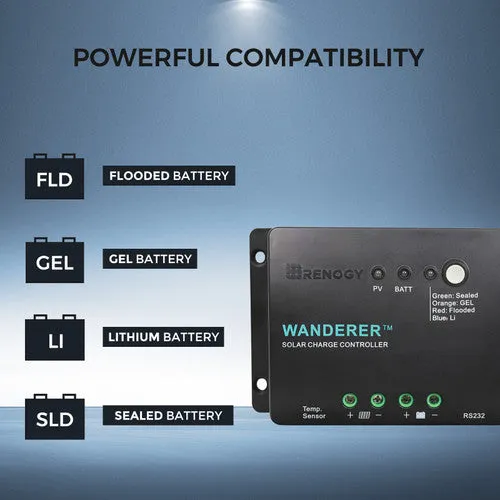

30A PWM Charge Controller

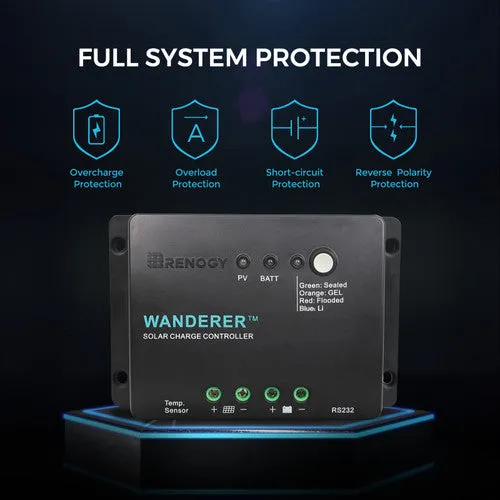

This kit features a 30A PWM charge controller that protects your batteries from overcharging and improves the system's performance. The controller includes an LCD display for easy monitoring of voltage, current, and battery status.

Durable Construction

Renogy’s monocrystalline panels are built to last. The corrosion-resistant aluminum frame ensures that the panels can withstand challenging outdoor conditions, making them durable and long-lasting.

Expandability

You can easily expand your system in the future, up to 400W. The kit provides flexibility for users who might need more power later.

Simple Installation

The kit includes all the necessary mounting hardware and pre-drilled holes on the panels, ensuring a straightforward installation process for beginners.

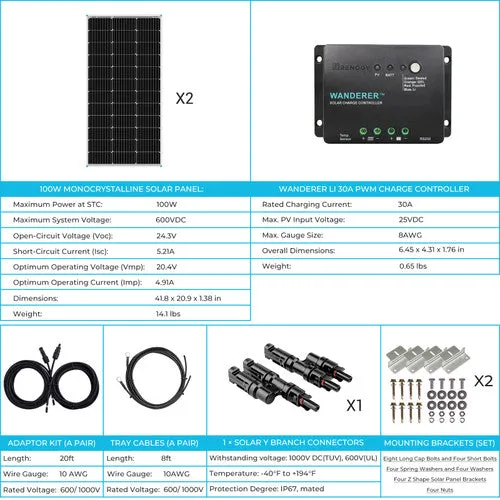

Specifications:

• Max Power at STC: 100W
• Open-Circuit Voltage (Voc): 24.3V
• Optimum Operating Voltage (Vmp): 20.4V
• Short-Circuit Current (Isc): 5.21A
• Optimum Operating Current (Imp): 4.91A
• Operating Temperature: '-40°F to 185°F(-40℃ to 85℃)
• Weight: 14.1lb (6.4kg)
• Dimensions: 41.8*20.9*1.38in(1062x530x35mm)

• Nominal Voltage: 12 V
• Rated Charge Current: 30A
• Max. PV Input Voltage: 25 VDC
• Max. PV Input Power: 400W (12V)

• Length : 20FT
• AWG : 10
• Rating Voltage : 600/1000V
• Temperature : -40°F to 185°F

• Length: 8ft
• AWG: 10
• Rating Voltage: 600/1000V
• Temperature: -40°F to 185°F

• Withstanding Voltage: 1000V DC(TUV), 600V(UL)
• Protection Degree: IP67, mated
• Rated Current: 50A
• Temperature: -40°F to 195°F

• Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
• Four Z Shape Solar Panel Brackets: Four Nuts

• Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty; 25 year 80% output warranty10 year material and workmanship warranty
• Accessories: 1-year material and workmanship warranty

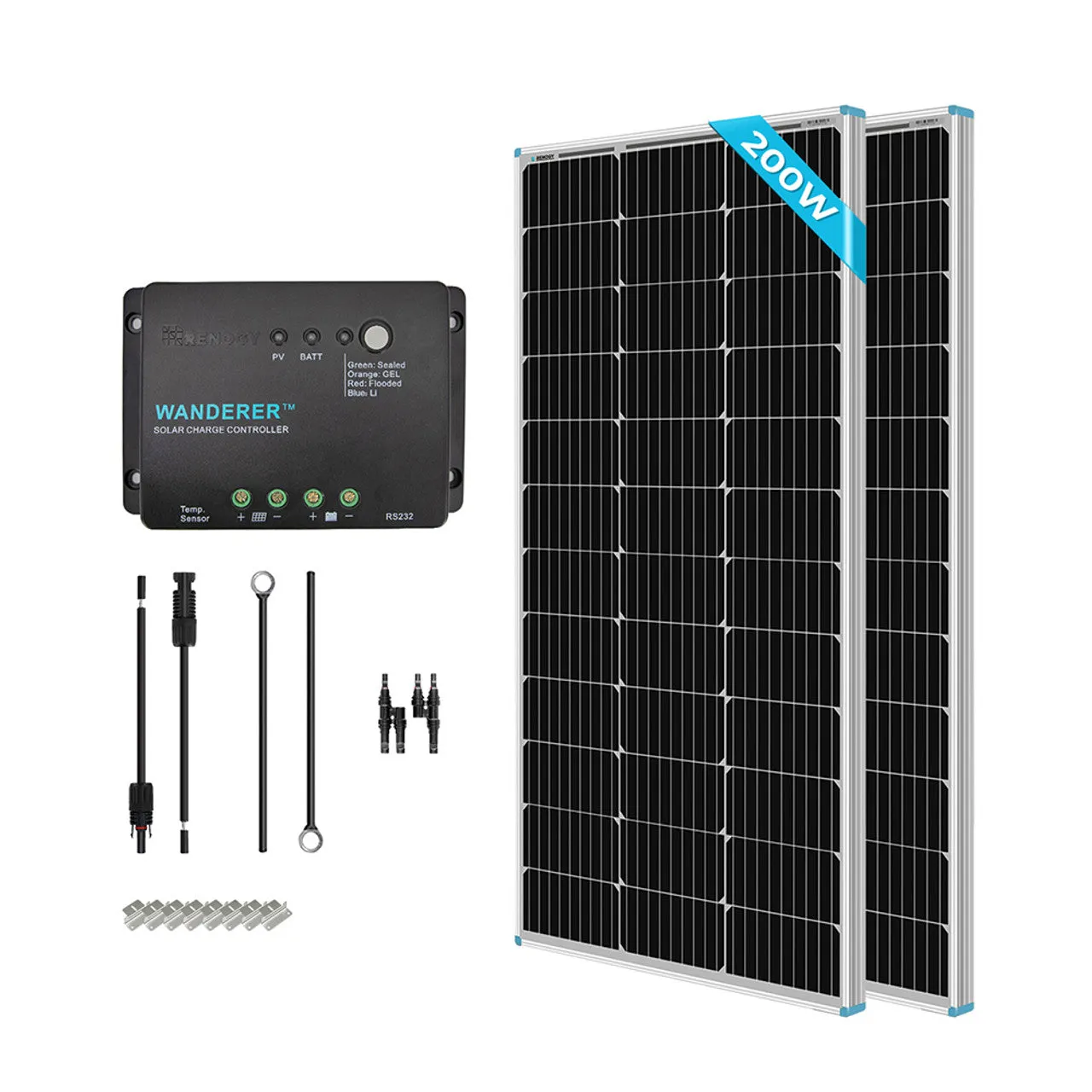

What's in the Box:

2 x 100W Mono Panel

1 x Solar Y Branch Connectors

2 x Mounting Z Brackets

1 x Renogy 20ft 10AWG Solar Adaptor Kit (A pair)

1 x Renogy 8ft 10AWG Tray Cables (A pair)

1 x Renogy Wanderer Li 30A PWM Charge Controller
