Panel mounted displays give both a visual and audible alarm in the event of an
extinguisher discharge or low cylinder pressure.They have dimmable LEDs, Silence
and Reset functions to enable the machinery to be restarted after shutdown.
Displays are available in round or rectangular format and comply with ISO Marine
8846 and meet CE approval.

Specifications & Dimensions

• Buzzer: 85dB @ 10cm
• Enclosure: UV Stable ABS
• Display Connections: 2 x RJ45 parallel sockets
• Dimensions: 51mm dia. cut out 62mm dia. overall (Round)
• 40mm dia. cut out H: 92 x W: 72mm overall (Rectangular)
• Compliance: CE and RoHS Compliant

Models & Display Style

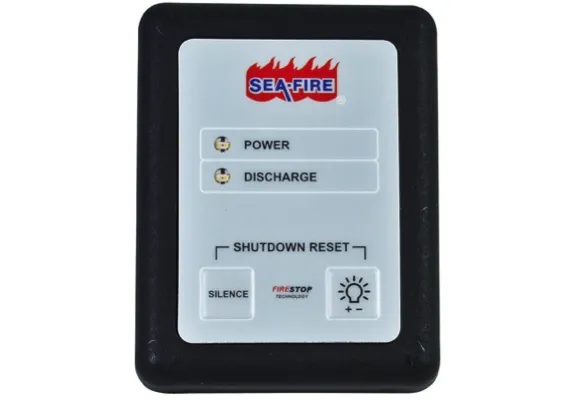

• Sea-Fire System Monitor Control - Square

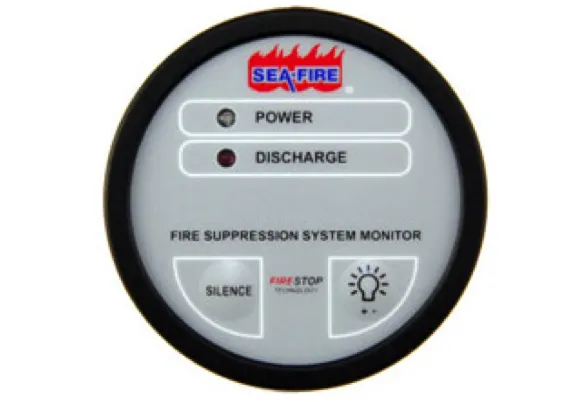

• Sea-Fire System Monitor Control - Round
• Sea-Fire System Monitor Control - With Discharge Indication & High Temperature Zone - Square
• Sea-Fire System Monitor Control - With Discharge Indication & High Temperature Zone - Round
• Sea-Fire System Monitor Control - With Discharge Indication & Auxillary Zone - Square
• Sea-Fire System Monitor Control - With Discharge Indication & Auxillary Zone - Round
• Sea-Fire System Monitor Control - With Discharge Indication and Low Pressure Zone ( H Series Engineered Systems Only ) - Square
• Sea-Fire System Monitor Control - With Discharge Indication and Low Pressure Zone ( H Series Engineered Systems Only ) - Round
