PN /SS-CIP2220V-1W *

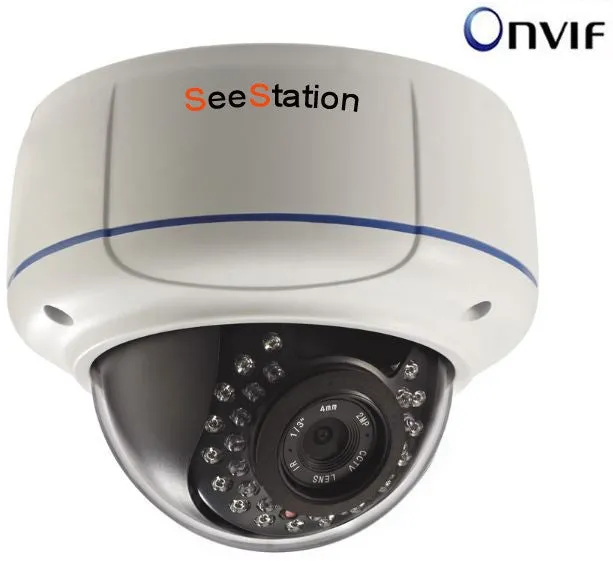

1.3MP IP Vandal Dome Camera "Built In POE"
Aptina AR0130 Hi3518C
1.3MP, H.264, 960P@30fps
2.8-12mm varifocal HD lens with IR CUT
Cable conceal inside bracket
DC12V
42PCS IR LEDs / 40M
IP66, white casing, built in POE
|
Model No. |
SS-CIP2220V-1W |
|
System Structure |
Embedded RTOS,dual-core 32bit DSP(Hi3518C),pure hard compression,watch dog |
|
Image Sensor |
1/3" AR0130 low-illumination CMOS |
|
Video Compression |
H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
|
Image output |
main stream: 1280*960，1280*720; sub-stream:704*576 |
|
Mini Illumination |
[email protected],black/white: 0.001 [email protected] |
|
Audio |
/ |
|
Lens |
2.8-12MM |
|
POE |
Support |
|
Auto Iris |
Support |
|
Network Interface |
1*RJ45 10/100M |
|
ONVIF |
Support |
|
Mobile Monitoring |
iPhone，Windows Mobile，BlackBerry，Symbian，Android |
|
IR LED |
30 PCS IR LED |
|
IR Distance |
20M |
|
Operation Temperature |
-10℃~ 60℃ |
|
POE |
Support |
|
Power Supply |
DC12V |
|
Size |
95*145mm |
|
Weight |
1.2KG |
|
OEM Color |
White or New Gray |
